SCSI Items

Last Change: 20/Jul/2017

[Storage Units] [Hard Disks] [CDROM/CDR/CDRW/DVDROM] [DAT/Floptical/DLT] [SCSI cards] [Cables, Adapters and Terminators] [Misc]
I have a wide variety of SCSI items for sale, including JBOD RAID units, single-item external enclosures, hard drives, CDRW/CDROMs, DAT drtives, SCSI cards, cables, terminators, etc. The available items are as follows:

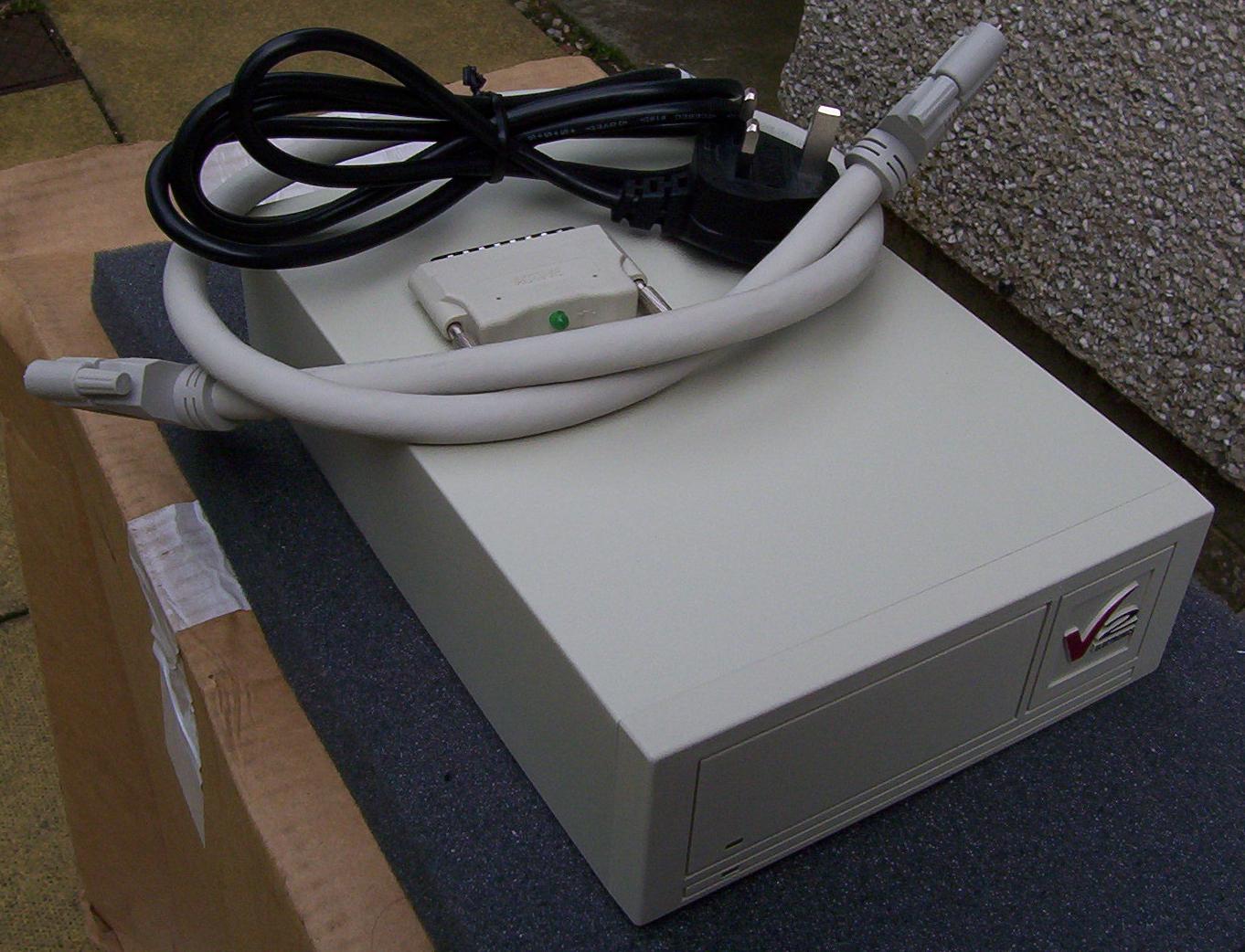

Storage Units:


Hard Disks:

This is the same Disks Table sequence as shown on the Parts/Spares page, included here aswell merely for convenience and cross-referencing. Original SGI-branded disks are listed in a separate table as they are priced differently. See after the tables for detailed notes, warranty information, etc. Generic SCSI disks, or OEM such as HP, Dell, Compaq, etc.:

Capacity Made By Model Name SCSI
Type
Model No. Connector RPM Height Access
Time
(msec)
Speed
MB/sec
OEM Name and
Part No. (if any)
Specs
Link
Price
(UKP)
300GB Seagate Cheetah 15K.5 U320 ST3300655LC 80pin SCA 15000 1" 2.0 125 - specs 295
300GB Fujitsu - U320 MBA3300NC 80pin SCA 15000 1" 3.4 147 Dell, 0JU654 specs 275
300GB Seagate Cheetah 10K.7 U320 ST3300007LW 68pin 10000 1" 3.0 118 - specs 215
300GB Seagate Cheetah 10K.7 U320 ST3300007LC 80pin SCA 10000 1" 3.0 118 - specs 195
300GB Fujitsu - U320 MAW3300NP 68pin 10000 1" 4.5 132.4 - specs 225
300GB Fujitsu - U320 MAW3300NC 80pin SCA 10000 1" 4.5 132.4 - specs 195
300GB Fujitsu - U320 MAT3300NP 68pin 10000 1" 4.5 132.4 - specs 225
300GB Fujitsu - U320 MAT3300NC 80pin SCA 10000 1" 4.5 132.4 - specs 195
300GB Fujitsu - U320 MAT3300NC 80pin SCA 10000 1" 4.5 132.4 - specs 195
300GB Hitachi Ultra Star U320 HUS103030FL3800 80pin SCA 10000 1" 4.3 89.3 - specs 145
147GB Maxtor Atlas 15K II U320 8K147J0 80pin SCA 15000 1" 3.0 98 - specs 95
147GB Maxtor Atlas 10K V U320 8D147L0 68pin 10000 1" 4.0 89 - specs 85
147GB Maxtor Atlas 10K V U320 8D147J 80pin SCA 10000 1" 4.0 89 - specs 75
146GB Seagate Cheetah U320 ST3146807LC 80pin SCA 10000 1" 4.7 105 - specs 75
146GB Fujitsu - U320 MAP3147NC 80pin SCA 10000 1" 4.5 70 - specs 75
73GB Maxtor Atlas 15K II U320 8K073J0 80pin SCA 15000 1" 3.0 98 - specs 55
73GB Seagate Cheetah U320 ST373454LC 80pin SCA 15000 1" 3.6 86 - specs 55
73GB Seagate Cheetah U320 ST373453LC 80pin SCA 15000 1" 3.6 86 - specs 55
73GB Seagate Cheetah U320 ST373207LC 80pin SCA 10000 1" 4.7 118 - specs 50
73GB Seagate Cheetah U320 ST373307LC 80pin SCA 10000 1" 4.7 105 - specs 50
73GB Maxtor Atlas 10K IV U320 8B073J0 80pin SCA 10000 1" 4.3 72 - specs 50
73GB Fujitsu - U320 MAT3073NC 80pin SCA 10000 1" 4.5 132 - specs 40
72GB Hitachi - U320 DK32DJ-72MC 80pin SCA 10000 1" 4.9 74 - specs 40
73GB Seagate Cheetah U160 ST373405LC 80pin SCA 10000 1" 5.1 63.9 Dell, 02E536 specs 40
73GB Seagate Cheetah U160 ST373405LC 80pin SCA 10000 1" 5.1 63.9 - specs 40
73GB Maxtor Atlas 10K III U320 KU073J8 80pin SCA 10000 1" 4.5 55 - specs 35
73GB Maxtor Atlas 10K III U160 ? 80pin SCA 10000 1" 4.5 50 Compaq, BD07264546 specs 35
73GB Seagate Cheetah U160 ST173404LCV 80pin SCA 10000 1.6" 6.15 40.2 - specs 25
36GB Fujitsu - U320 MAX3036NC 80pin SCA 15000 1" 3.3 147 Worldisk, MX03036SC800600X
Special Warranty: 6 months
specs 30
36GB Fujitsu - U320 MAS3367NC 80pin SCA 15000 1" 3.3 118 Worldisk, MX03367SC800600S
Special Warranty: 6 months
specs 30
36GB Fujitsu - U320 MAX3036NP 68pin 15000 1" 3.3 147 Worldisk, MX03036SC680600U
Special Warranty: 6 months
specs 75
36GB Fujitsu - U160 MAM3367MC 80pin SCA 15000 1" 3.5 68.6 to 88 Compaq, BF01865222 specs 25
36GB Fujitsu - U320 MAU3036NC 80pin SCA 15000 1" 3.3 147 - specs 25
36GB Seagate Cheetah U320 ST336753LC 80pin SCA 15000 1" 3.6 86 - specs 25
36GB Fujitsu - U320 MAP3367NC 80pin SCA 10000 1" 4.5 70 - specs 20
36GB Maxtor Atlas 10K IV U320 8B036J0 80pin SCA 10000 1" 4.3 72 - specs 20
36GB Hitachi - U160 DK32EJ-36NC 80pin SCA 10000 1" 4.9 74 - specs 20
36GB Fujitsu - U160 MAN3367MC 80pin SCA 10000 1" 4.5 84 Compaq, BD0366459B specs 20
36GB Seagate Cheetah U320 ST336607LC 80pin SCA 10000 1" 4.7 59.9 - specs 25
36GB Seagate Cheetah U160 ST336704LCV 80pin SCA 10000 1" 5.4 40.2 - specs 20
36GB IBM Ultrastar U160 DDYS-T36950 80pin SCA 10000 1" 4.9 36.1 - specs 20
36GB Seagate Cheetah U2W ST136403LC 80pin SCA 10000 1.6" 6.15 36.8 - specs 20
36GB IBM Ultrastar U2W DRHS-36D 80pin SCA 7200 1.6" 7.19 19.9 - specs 15
18GB Fujitsu - U160 MAM3184MC 80pin SCA 15000 1" 3.5 68.6 to 88 Compaq, BF01865222 specs 25
18GB Seagate Cheetah U160 ST318452LC 80pin SCA 15000 1" 3.6 51.8 to 68.1 Compaq, 235065-001 specs 25
18GB Fujitsu - U160 MAN3184MC 80pin SCA 10000 1" 4.5 52 to 84.1 - specs 20
18GB Seagate Cheetah U160 ST318404LC 80pin SCA 10000 1" 5.2 40.0 - specs 20
18GB Quantum Atlas 10K U160 TN18J462 80pin SCA 10000 1" 5.0 41.0 Dell, JP-082YPV specs 20
18GB IBM Ultrastar U160 DPSS-318350 80pin SCA 7200 1" 6.8 25.5 - specs 75
18GB IBM Ultrastar U2W DNES-318350 80pin SCA 7200 1" 7.0 20.2 - specs 75
18GB Seagate Barracuda U2W ST118273WC 80pin SCA 7200 1.6" 7.9 23.7 - specs 10
18GB IBM Ultrastar U2W DGHS-18Y 80pin SCA 7200 1.6" 7.5 22.4 - specs 10
18GB IBM Ultrastar U2W DGHS-18V 68pin 7200 1.6" 7.5 22.4 - specs 10
9GB IBM - HVD DCHS-09X 68pin 7200 1.6" ? ? - - 95
9GB IBM Ultrastar U160 DDYS-T09170 80pin SCA 10000 1" 4.9 36.1 HP, 5184-4809 specs 15
9GB Compaq - U2W - 80pin SCA 10000 1" ? ? Compaq, HD0093172C - 15
9GB IBM Ultrastar U160 DPSS-309170 80pin SCA 7200 1" 6.8 25.5 - specs 55
9GB IBM Ultrastar U2W DNES-309170 80pin SCA 7200 1" 7.0 20.2 - specs 75
9GB Fujitsu - UW MAB3091SC 80pin SCA 7200 1" 8.0 15.0 - specs 15
9GB Fujitsu - UW MAB3091SC 80pin SCA 7200 1" 8.0 15.0 Compaq, 313706-B21 specs 15
9GB Compaq (WD) - UW WDE9100-6008A8 80pin SCA 7200 1" ? ? Compaq, 313717-001 - 15
9GB IBM Ultrastar FW DCHS-09Y 80pin SCA 7200 1.6" 8.5 15.4 Compaq, 242899-001 specs 10
9GB Seagate Barracuda 9 UW ST19171WC 80pin SCA 7200 1.6" 9.7 15.5 Compaq, 242769-001 specs 45
9GB Seagate Barracuda 9 UW ST19171WC 80pin SCA 7200 1.6" 9.7 15.5 - specs 15
9GB Seagate Barracuda 9 UW ST19171W 68pin 7200 1.6" 9.7 15.5 - specs 45
9GB Fujitsu - UW M2949EAU 80pin SCA 7200 1.6" 9.0 14.9 - - 15
4GB Various - FW- - 80pin SCA 7200 1" - - - - 5
4GB Fujitsu - FW M2934CAU 80pin SCA 7200 1.6" 10.3 11.3 - specs 15
2GB Various - FW - 80pin SCA 5400 1" - - - - 5


SAS/SATA Drives (both 3Gbit and 6Gbit/sec interface):

Capacity Made By Model Name Disk
Type
Model No. Connector RPM Height Access
Time
(msec)
Speed
MB/sec
OEM Name and
Part No. (if any)
Specs
Link
Price
(UKP)
2000GB Seagate (newish) Constellation ES.3 SATA ST2000NM0033 3Gbit/6Gbit 7200 1" 4.16 88 to 197 - specs 95
600GB Seagate (new!) Cheetah 15K.7 SAS ST3600057SS 3Gbit/6Gbit 15000 1" 2 129 to 200 - specs 295
600GB Seagate (new!) Cheetah 15K.7 SAS ST3600057SS 3Gbit/6Gbit 15000 1" 2 129 to 200 Dell, 0J762N specs 275
450GB Seagate (new!) Cheetah SAS ST3450857SS 3Gbit/6Gbit 15000 1" 2 129 to 200 HP, 516810-002 specs 195
450GB Seagate (new!) Cheetah SAS ST3450856SS 3Gbit 15000 1" 2 105 to 183 HP, 454228-003 specs 175
450GB Hitachi Ultrastar SAS HUS154545VLS300 3Gbit 15000 1" 2 104 to 163 HP, 480528-002 specs 150


50pin SCSI Disks:

Capacity Made By Model Name SCSI
Type
Model No. Connector RPM Height Access
Time
(msec)
Speed
MB/sec
OEM Name and
Part No. (if any)
Specs
Link
Price
(UKP)
18GB Seagate Barracuda USCSI ST318418N 50pin 7200 1" 4.17 20 9W8004-001 specs 150
9GB IBM Ultrastar USCSI DNES-309170 50pin 7200 1" 7.0 20 25L1790 specs 95
4.3GB IBM Ultrastar FW DCAS-34330 50pin 5400 1" 5.6 8 09J1035 specs 45
2GB IBM - Fast - 50pin 5400 1" - - - - 35
1GB IBM - Fast - 50pin 5400 1" - - - - 25
548MB IBM Deskstar Fast DSAS-3540 50pin 4500 1" 12 5.5 84G8419 specs 15


Original SGI-branded SCSI disks:

Capacity Made By Model Name SCSI
Type
Model No. Connector RPM Height Access
Time
(msec)
Speed
MB/sec
OEM Name and
Part No. (if any)
Specs
Link
Price
(UKP)
147GB Hitachi Ultrastar U320 HUS103014FL3600 68pin 10000 1" 2.99 72 to 134 SGI, 064-0288-001 Rev A, FW=SF01 specs 125
146GB Seagate Cheetah U320 ST3146707LC
PN 9X2006-033
80pin SCA 10000 1" 4.7 39 to 80 SGI, 064-0289-001 Rev A, FW=2742
ASY 013-4351-001
specs 115
73GB Seagate Cheetah U160 ST373405LC 80pin SCA 10000 1" 5.1 63.9 SGI, 064-0209-003 specs 95
36GB Hitachi Ultrastar U320 HUS151436VL3600 68pin 15000 1" - - SGI, 064-0291-001 Rev A specs | PDF 75
36GB Seagate Cheetah U160 ST336706LC 80pin SCA 10000 1" 5.2 68 SGI, 064-0217-001
or 064-0217-002
specs 65
36GB Seagate Cheetah U160 ST336704LC 80pin SCA 10000 1" 5.4 40.2 SGI, 064-0140-004 specs 65
18GB Seagate Cheetah U160 ST318452LC 80pin SCA 15000 1" 3.6 51.8 to 68.1 SGI, 064-0210-002/A specs 55
18GB Seagate Cheetah U160 ST318406LW 68pin 10000 1" 5.2 68 SGI, 064-0232-001/A specs 40
18GB Seagate Cheetah U2W ST318203LC 80pin SCA 10000 1" 5.4 29.5 SGI, 064-0131-001 specs 40
18GB Seagate Cheetah U160 ST318404LC 80pin SCA 10000 1" 5.2 40.0 SGI, 013-3173-002 specs 40
18GB IBM Ultrastar U2W DNES-318350 80pin SCA 7200 1" 7.0 20.2 SGI, 064-0129-001/A specs 95
18GB IBM Ultrastar U2W DNES-318350 80pin SCA 7200 1" 7.0 20.2 SGI, 064-0113-001/B specs 95
9GB IBM Ultrastar U2W DGHS-09Y 80pin SCA 7200 1" 6.5 22.4 SGI, 064-0070-001
ASY 013-2325-001 Rev B
specs 45
9GB IBM Ultrastar U2W DNES-309170 80pin SCA 7200 1" 7.0 20.2 SGI, 064-0114-001/B specs 75
9GB IBM Ultrastar U2W DDRS-39130 80pin SCA 7200 1" 7.5 13.4 SGI, 064-0076-001/A specs 45
9GB IBM Ultrastar FW DCHS-09Y 80pin SCA 7200 1.6" 8.5 15.4 SGI, 064-0024-001 specs 25
4GB IBM Ultrastar HVD DCHS-04X 68pin 5400 1" ? ? SGI, 064-0043-001 ? 95
4.5GB IBM Ultrastar UW DDRS-34560 80pin SCA 7200 1" 7.5 13.4 SGI, 064-0089-001/B specs 20
4.5GB Seagate Barracuda 4XL FW ST34572WC 80pin SCA 7200 1" 9.4 17.5 SGI, 064-0006-001 specs 20
2GB IBM Ultrastar FW DCAS-32160 80pin SCA 5400 1" 8.5 8.0 SGI, 064-0022-001/A specs 15
2GB IBM Ultrastar FW DORS-32160 80pin SCA 5400 1" 8.5 5.7 SGI, 013-1578-001 specs 15


Some drives still have valid manufacturer warranties; any such drive in the tables above will have the manufacturer name in bold type, and when I am able to find the time the model number will be a link to the warranty details for that drive, or a picture (or both); either way, feel free to email me for full details.

OEM drives do not have end-user warranties by definition, but I will cover any 15K rpm drive for 90 days, any 10K rpm drive for 60 days, any 7200rpm drive for 30 days, and any 5400rpm drive for 10 days, whatever the manufacturer's warranty may be. Extended warranty cover available on request as follows:

        WARRANTY     | <-- Existing Warranty Period -->
         TABLE       |  10 Days  |  30 Days  |  60 Days  |  90 Days
  -------------------------------------------------------------------
  Extend to 30 days  |    +20    |     -     |     -     |     -
  Extend to 60 days  |    +35    |    +15    |     -     |     -
  Extend to 90 days  |    +50    |    +30    |    +15    |     -
  Extend to 6 months |    +75    |    +55    |    +40    |    +25
  Extend to 1 year   |   +100    |    +80    |    +65    |    +50
  Extend to 3 years  |   +150    |   +130    |   +115    |   +100

O2 can only use 1" 80pin SCA disks (though the external port can be used to connect to any type of drive), whereas Octane, Onyx2 and Origin can use both 1" and 1.6" SCAs.

IRIS Indigo and Indigo2 can use all types of drive, via a SCSI adapter for 68/80pin models, though I would recommend an 80pin SCA + adapter (the adapter for 68pin is expensive, while 50pin disks of any reasonable capacity are also expensive). I have suitable 50/80pin adapters available for +10.

Indy normally uses 1" 50pin disks; 1.6" is possible, but prevents the use of the upper disk bay. 68pin and 80pin disks can be used with a suitable SCSI adapter, though an 80pin + adapter will block the upper bay because the adapter is so high. The best solution is a 1" 68pin disk + adapter, which still leaves the upper bay available for use.

Fuel normally uses 68pin disks, but can use an 80pin with an adapter, for which it is best to use a modern drive which can properly exploit the faster U160 SCSI bus, eg. a Maxtor Atlas 15K II, whereas the slower bus in O2/Octane/Onyx2/Origin is more sensibly served with an older drive that cannot sustain more than 40MB/sec anyway, and is therefore cheaper, eg. the 36GB ST336704LCV or 73GB ST173404LCV, although a modern drive does give faster access times which would help when dealing with lots of small files, eg. code compilation, databases, email archive searching, etc. A 15K drive in Octane definitely helps for such tasks. I recommend the Fujitsu 15K MAS series for O2 as it is fast but low noise; likewise, the MAS or MAX 15K is ideal for Octane.

The addition of a PCI cage (or XTalk adapter) and a suitable SCSI card (eg. U2W or U160) will also allow Octane to properly exploit a modern fast drive, especially in RAID configurations (I get 175MB/sec off a simple dual-channel JBOD RAID on a QLA12160, though the same RAID runs much faster with a Fuel/Tezro since those systems have faster 66MHz PCI [Fuel] or 133MHz PCIX [Tezro]).

Tezro uses 80pin disks internally, but unlike Octane the sleds are designed only for 1" models. One can of course connect any type of drive externally. As with Fuel, it is worth having a fast drive since Tezro can properly exploit the extra speed, eg. a 15K (the Maxtor 146GB 15K II is ideal for Tezro).

Larger capacity drives are listed first. For drives of equal capacity, those with much higher sustained transfer rates may be valued higher, ie. drives that are ideal for Fuel, Tezro, or for use in RAID setups. Follow the 'specs' link for detailed information on any drive. The table already shows average access time in milliseconds and typical maxium sustained transfer rates to aid comparisons.

Lastly, note that original SGI-badged drives are more expensive than a non-SGI drive of the same capacity, or even the same model; but there is no need for hobbyists to use original SGI drives. This is why the SGI drives are in a separate table.

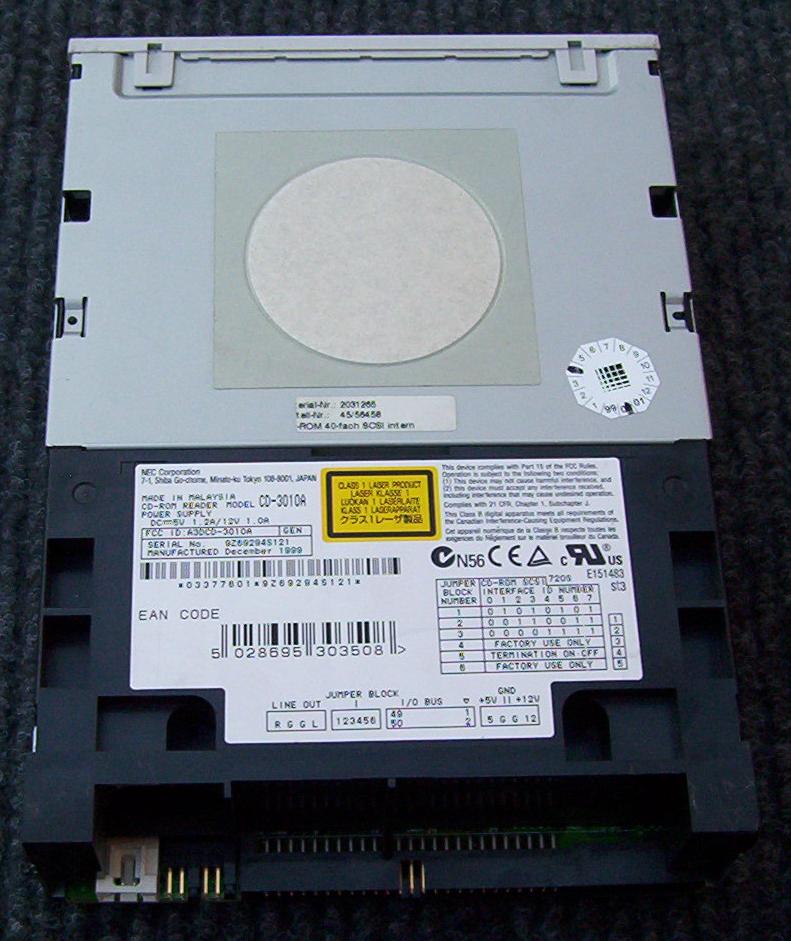

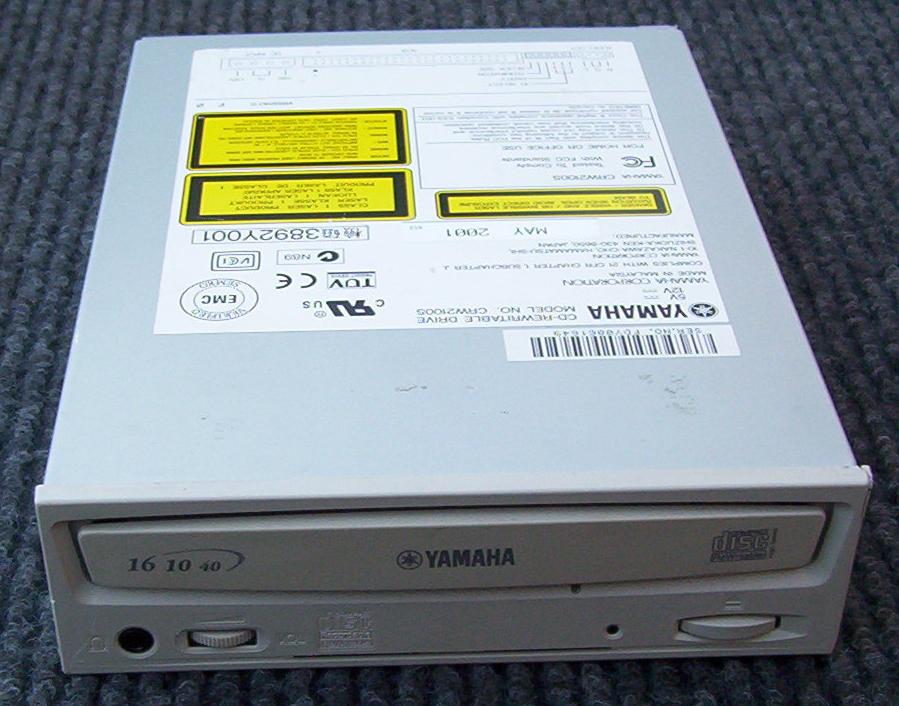

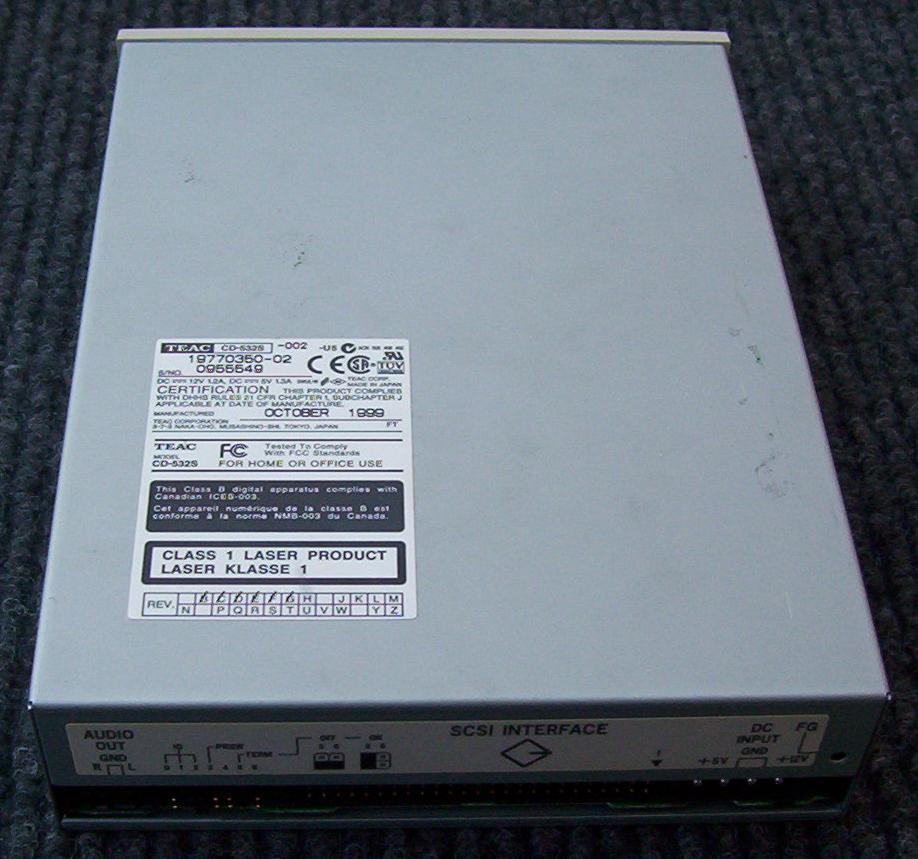

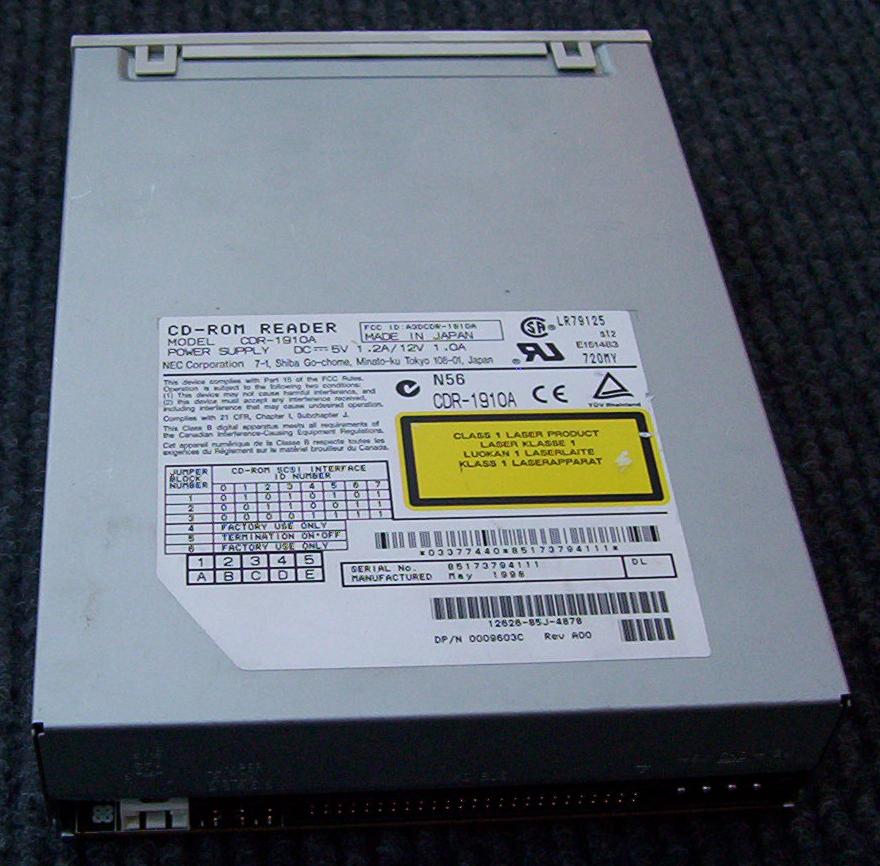

DVD/CDROM/CDR/CDRW Modules:

For any internal CDROM/CDRW module, add 40 to make it an external unit with all cables included.

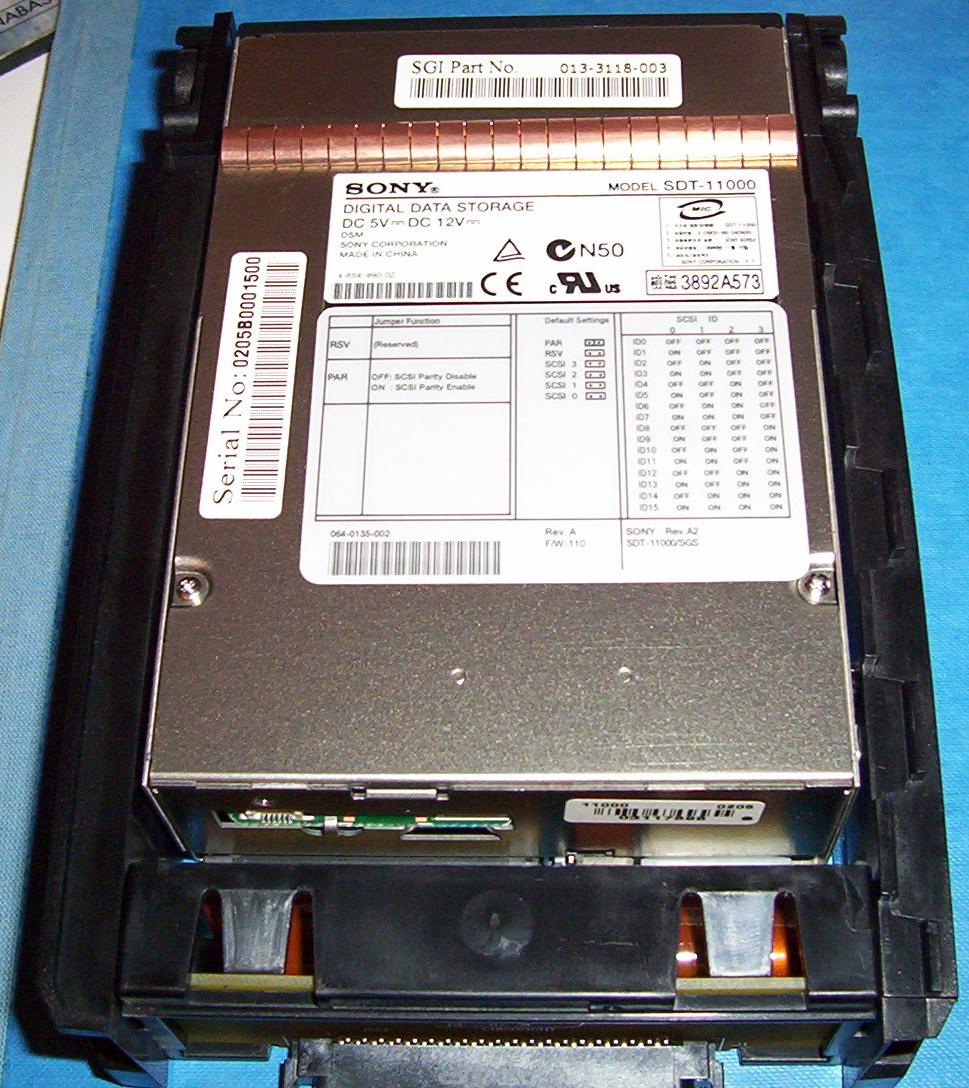

DAT/Floptical/DLT and Other Drives:


SCSI cards:

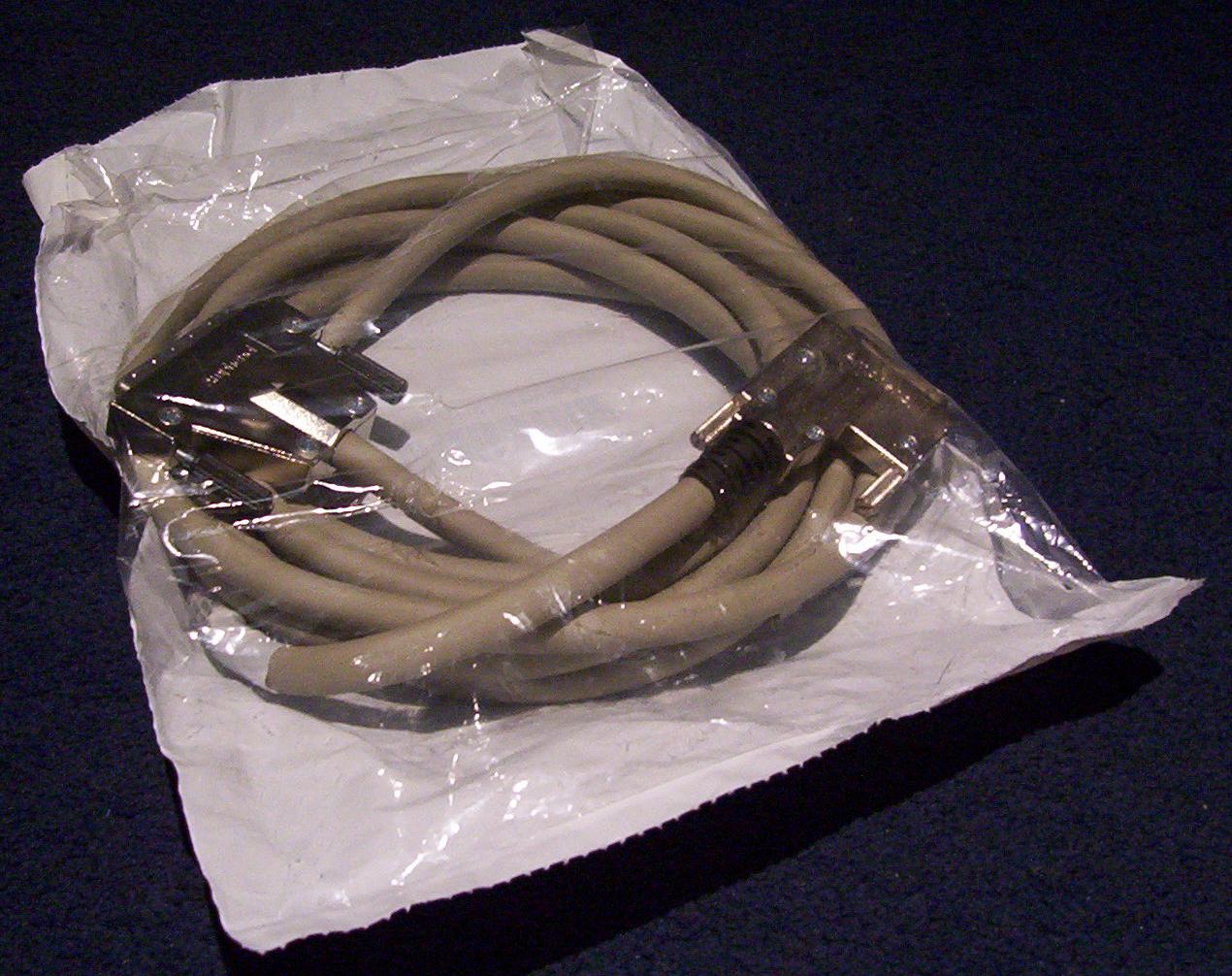

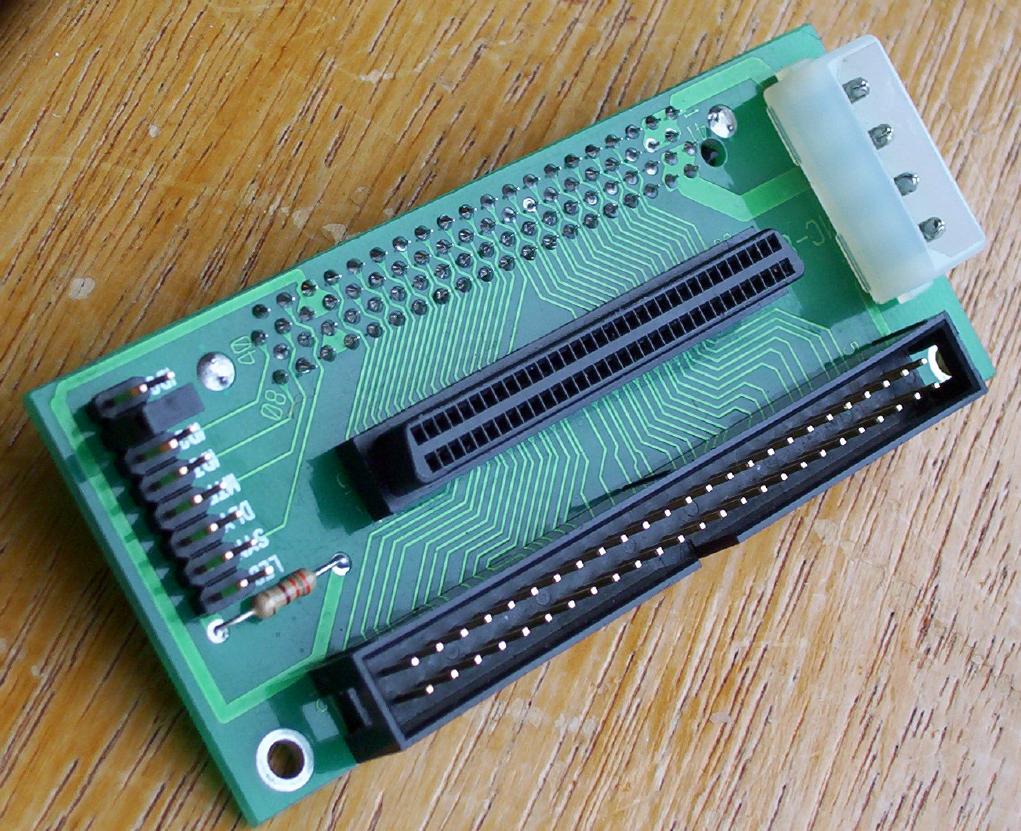

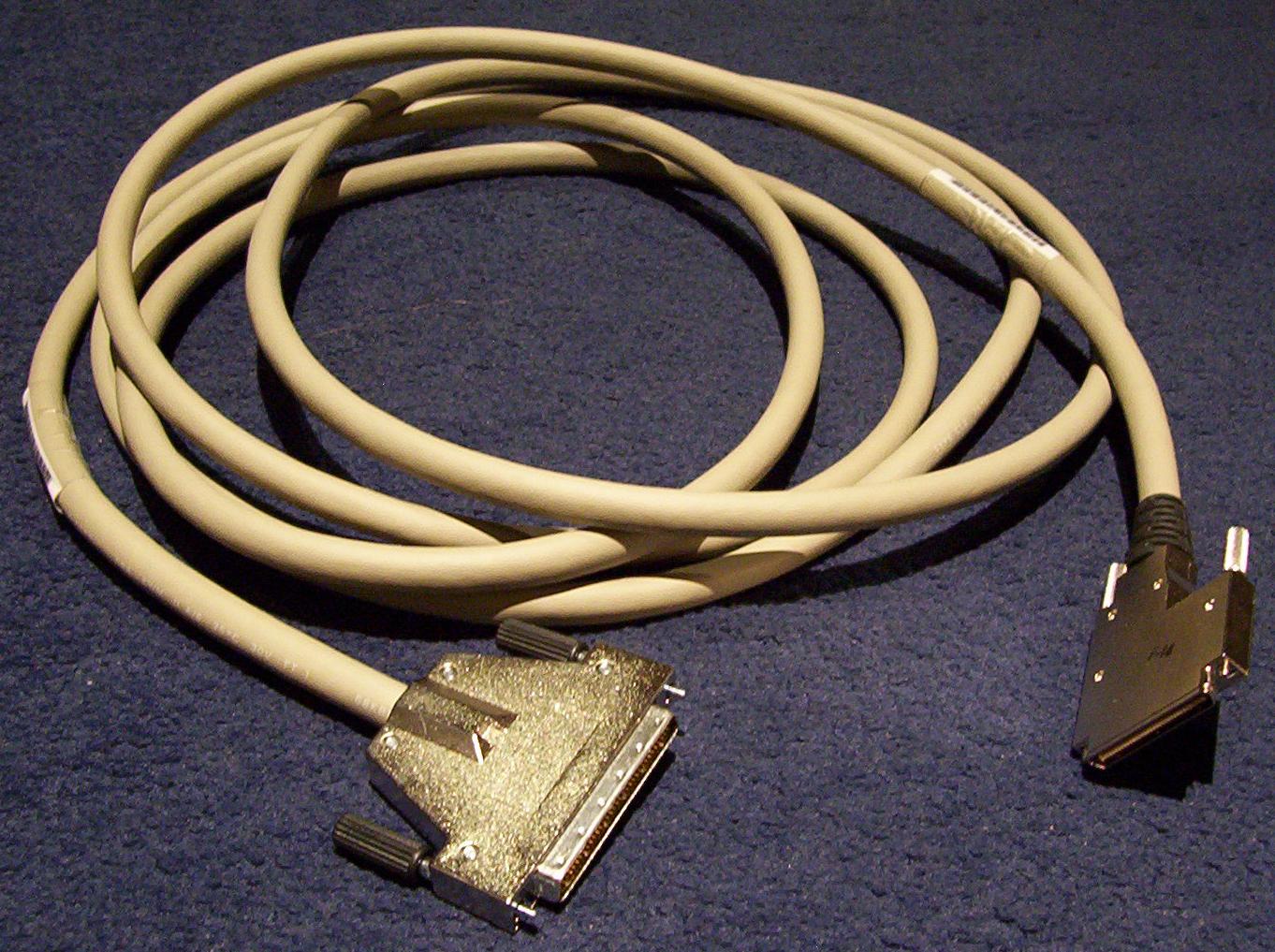

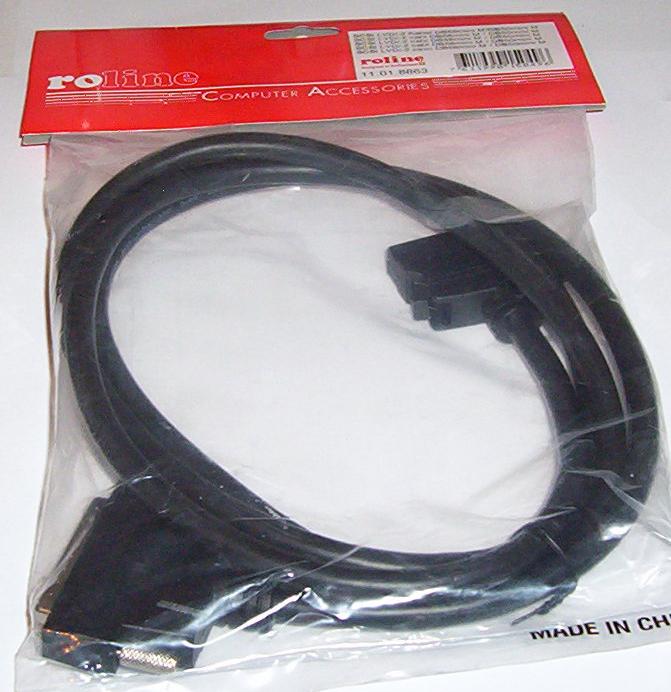

Cables, Adapters and Terminators:

All cables with 1 or more VHDCI connectors are suitable for use with QLOGIC 1080/1280/12160 SCSI cards. Long cables are ideal in order to position noisy storage units at a distance.


Miscellaneous SCSI Items:


Please see the shipping costs page for details of postage charges to the UK, mainland Europe and beyond.
